The BraunAbility Chrysler Voyager rear-entry ADA van is built for commercial operators who need a flexible, dependable, and cost-efficient mobility solution. With multiple seating configurations, room for up to 7 passengers or up to 2 wheelchair positions depending on setup, and a lowered-floor rear-entry design, it is well suited for NEMT providers, shuttle services, group homes, and other mixed-passenger transportation needs. BraunAbility also positions this model as a durable, economical vehicle designed to keep fleets running day after day, year after year.
The Chrysler Voyager rear-entry is designed to make boarding, loading, and securement easier for daily commercial use. Its rear-entry conversion, lowered floor, and wide manual ramp help create safer, more efficient access for wheelchair passengers and operators.

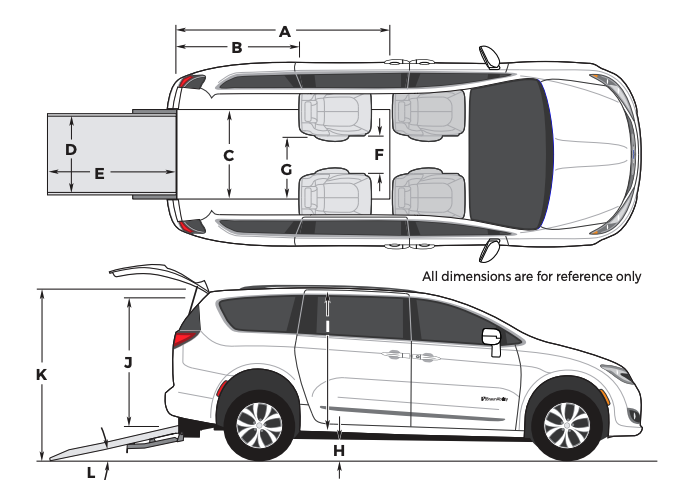

| Lowered floor length | A | 98" |
| Lowered floor length (behind optional 2nd row bench) | B | 54.625" |
| Lowered floor width | C | 34.25" |
| Ramp width (usable clear opening) | D | 34" |
| Ramp length (manual foldout) | E | 60" |
| OEM mid-row seats (both unfolded) | F | 15.25" |
| OEM mid-row seats (one folded up) | G | 23.5" |
| Ground clearance at muffler (lowest point - loaded) | H | 5" |
| 2nd row wheelchair location interior height | I | 56" |
| Entrance height | J | 56" |
| Overall vehicle height (hatch closed - unloaded) | K | 75" |
| Ramp angle* | L | 10° |
Due to manufacturing tolerances both with the OEM vehicle and the conversion components, all dimensions may vary slightly from those shown.
* Ramp angle may vary based on chassis trim level and other environmental factors

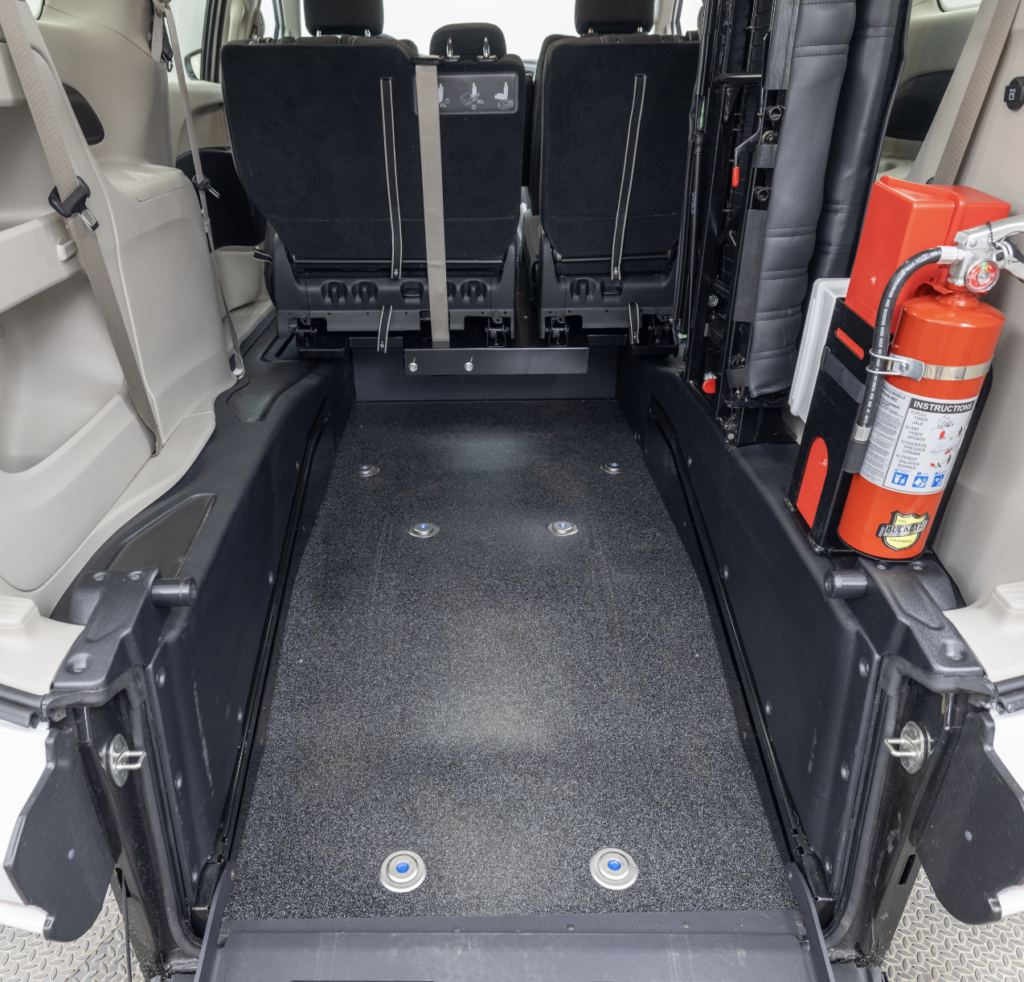

With a larger interior and a layout designed for mixed-passenger transportation, the Voyager helps create a more comfortable experience for both riders and drivers. Thoughtful interior space, flexible seating, and commercial-grade materials support a smoother ride throughout the day.
Built for frequent commercial use, the Voyager rear-entry is designed to support dependable daily operation and long-term fleet value. Durable materials, practical service features, and compliance with key commercial standards make it a strong fit for high-use transportation programs.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Buy America Compliant
Meets federal procurement requirements, supporting U.S.-based manufacturing.
ADA, FMVSS, and CMVSS Compliant
Fully compliant with all applicable safety and accessibility standards.
Meets/Exceeds Altoona Test Requirements
Proven durability and performance under rigorous transit vehicle testing.
CARB Approved
Certified to meet California Air Resources Board emissions standards.
Factory Remount 2nd-Row Flip & Fold Seats
Allows flexible passenger configurations while maximizing wheelchair space.
56-Inch Door Opening Height
Provides generous vertical clearance for easy entry and exit.

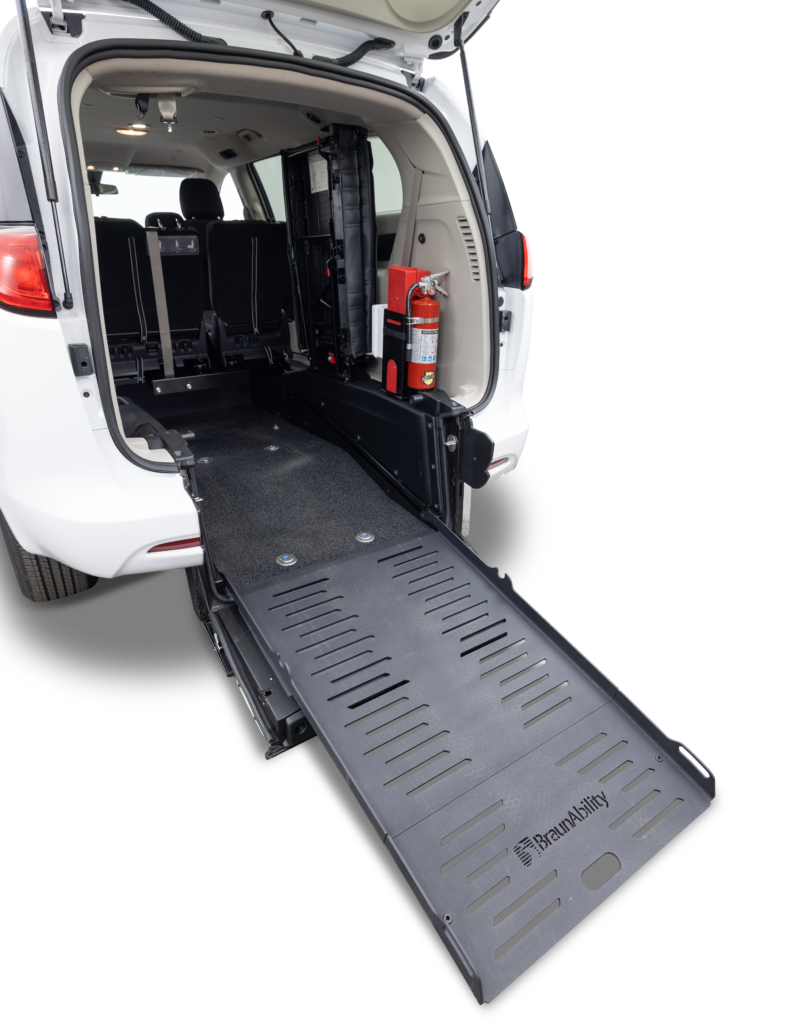

Manual Fold-Out Ramp (34″ Width, 1,000-lb Capacity)
Durable, ADA-compliant ramp supports heavy power chairs and scooters.
Multiple Wheelchair Restraint Locations
Accommodates one or more wheelchair users with secure tie-down points.
Rubberized Commercial Flooring
Slip-resistant and easy to clean—ideal for high-use commercial fleets.
ADA-Compliant Transmission Interlock
Prevents the vehicle from driving while the ramp is deployed.
Ramp and Entrance Lighting
Illuminated entry improves safety in low-light conditions.
Emergency Rear Hatch Release
Allows quick exit in the event of an emergency.
Back-Up Alarm System
Enhances rear visibility and safety while reversing.
