NMl:2 Vista Series

Reliable ADA Lift Solutions

The BraunAbility Vista Series is built for commercial operators who need reliable wheelchair lift access in side- or rear-door vehicle applications. With fully automatic operation, 800-lb lifting capacity, 48 inches of floor-to-ground travel, and a unique stacking platform that improves passenger and driver visibility, it is designed for safe and efficient daily use.

Key Benefits

close up of millennium lift

The Vista lift is designed to make boarding and unloading straightforward for attendants and passengers. Its fully automatic operation, flexible loading direction, and side- or rear-door compatibility make it a practical fit for a range of commercial vehicle applications.

  • Fully automatic FMVSS 403-compliant lift
  • Operated by an attendant
  • Side or rear door application
  • Loading position in either direction
  • 800-lb lifting capacity
  • 48″ floor-to-ground travel
  • Bridging feature for sidewalks or inclines
  • Integrated back-up pump

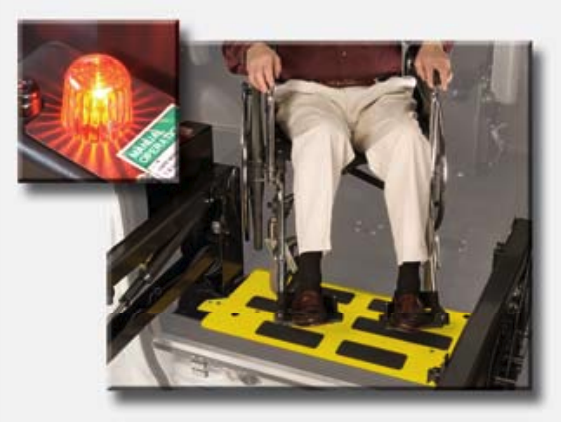

millennium lift with alarm for safety

Safety is a major part of the Vista’s design. Integrated dual handrails, audible and visual warnings, LED lift lighting, and high-visibility yellow safety areas help create a more secure and user-friendly boarding experience. Its unique stacking platform is also designed to increase visibility for both drivers and passengers.

  • Unique stacking platform for increased visibility
  • Integrated dual handrails
  • Visual and audible safety warnings
  • LED lift-mounted lights
  • Locking mechanical inboard barrier
  • Gas spring activated outer barrier
  • Yellow powder-coated transition areas for visibility
  • Rubber nose guard on outer barrier
  • Optional handrail belt

Built for commercial use, the Vista is engineered to help reduce downtime and simplify maintenance. Its redesigned baseplate, removable pump module cover, anti-rattle feature, and Lift-Tite stow system all support quieter operation and easier long-term service.

  • Interfaces with OEM interlocks
  • Quiet operation and low current draw
  • Adjustable anti-rattle feature
  • Durable redesigned baseplate
  • Easier hose and wiring service access
  • Pump module with removable cover for component access
  • Lift-Tite system secures platform during transit
  • Durable high-gloss powder-coated finish
  • Step-by-step installation with no peripheral hardware required

Technical Specifications:

  • Application: Side or rear door
  • Operation: Fully automatic
  • Compliance: FMVSS 403
  • Capacity: 800 lb
  • Travel: 48″ floor to ground
  • Controls: Hand-held control box with illuminated functions
  • Other: Optional handrail belt available
