The BraunAbility, Power Fold-Out, Chrysler Pacifica wheelchair-accessible van doesn’t look like a traditional wheelchair van! The Power Fold-Out is designed for wheelchair users who don’t need the extra door opening height of the XT model.
Pacifica Fold-Out: 53″ door height
Pacifica Fold-Out XT: 57″ door height
With its single-touch power ramp and door system, easy operation, and advanced safety features, the Pacifica is among the most user-friendly wheelchair-accessible vans. The Chrysler Pacifica chassis offers cutting-edge convenience and safety technology across multiple trim levels.

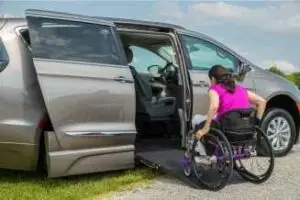

The BraunAbility Chrysler Pacifica wheelchair van features fully automatic sliding side doors and a power fold-out ramp for effortless, user-friendly access. The system can be controlled via the key fob or interior switches, and a built-in backup power supply ensures ramp operation even during power failures.
This fold-out ramp is the widest in its class, constructed from durable, lightweight aluminum with a 1,000-lb weight capacity. Its non-slip surface and debris-clearing slots provide added safety and reliability in all conditions.
New from BraunAbility, this second-row flip-and-fold seat option adds flexibility to the Power Fold-Out Chrysler Pacifica wheelchair van. It allows an ambulatory passenger to ride alongside a wheelchair user in the center cabin. The seat easily flips up and folds away when not used, maximizing interior space.
Every BraunAbility Power Fold-Out Pacifica includes an automatic kneeling system that reduces the ramp angle for safer, easier wheelchair access. When the ramp is deployed, an integrated actuator lowers the van’s suspension on the ramp side, reducing the incline to 9.1 degrees.
The floor is lowered 10 inches from the firewall to the rear axle, increasing interior headroom and improving accessibility. This design makes entry and exit more comfortable and provides wheelchair users with enhanced visibility, whether driving or riding.
Need more headroom? Consider the XT model with an increased door height.
Both front seats in the BraunAbility Chrysler Pacifica wheelchair-accessible van are removable. This flexibility allows wheelchair users to drive from their chairs or ride in the front passenger position, depending on their needs.

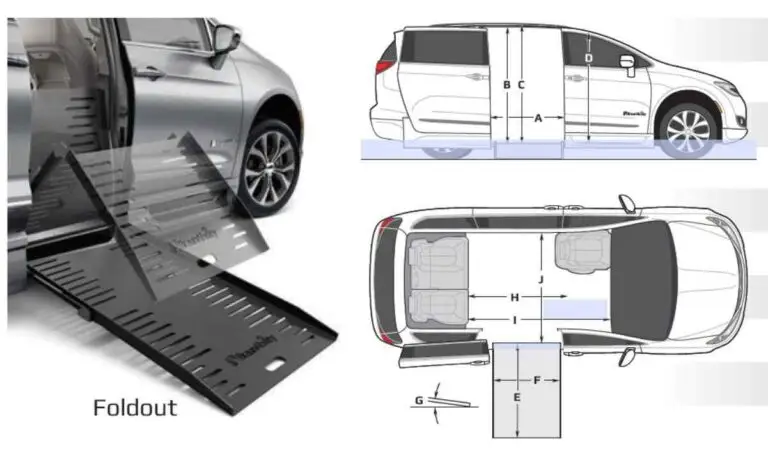

| Usable Door Opening Width | A | 32.375″ |
| Usable Door Opening Height | B | 53″ |
| Inside Center Height | C | 56″ |
| Height at Driver & Passenger Position | D | 56″ |
| Length of Ramp | E | 52″ |
| Usable Ramp Width | F | 30.125″ |
| Angle of Ramp | G | 9.1 Degrees |
| Length of Floor Behind Front Seats | H | 71″ |
| Overall Floor Length | I | 98.5″ |
| Width of Interior at B-Pillars | J | 62.25″ |
| Ramp Load Capacity | 1000 lbs. |
