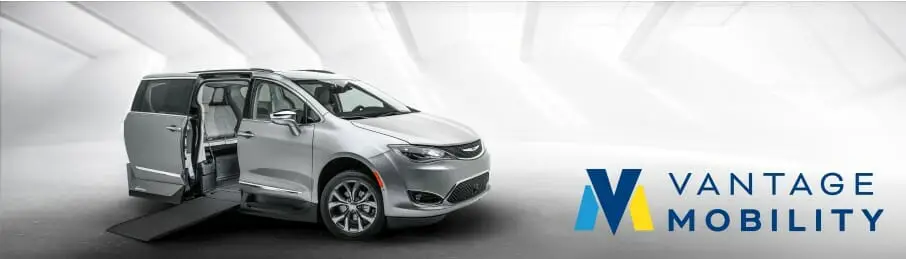

The Vantage Mobility Chrysler Pacifica & Voyager wheelchair-accessible van with a Northstar Conversion has multiple seating configurations and the latest safety and technology.
It features a 56-inch door opening height and a 30-inch wide in-floor ramp with a 1000-lb capacity, accommodating larger wheelchairs and taller seated passengers.
Vantage Mobility’s Chrysler Pacifica & Voyager wheelchair van with their Northstar conversion features a patented, ultra-low, in-floor power wheelchair ramp system that allows safe entry and exit. The ramp conveniently stows and deploys underneath the floor, creating additional interior space and maneuverability for all passengers. It creates an unobstructed entry for ambulatory passengers. The ramp is 30 inches wide and made from a high-strength aluminum alloy that can support loads up to 1000 lbs.
The Vantage Mobility Chrysler Pacifica & Voyager wheelchair van features an integrated “kneeling” system to reduce the vehicle’s ramp angle and make it easier for the wheelchair user to enter and exit. Once activated, the onboard computer engages an electric actuator mounted on the vehicle’s rear passenger side. The actuator lowers the van’s ramp side, reducing the ramp angle. With the kneeling system engaged, the ramp angle is reduced to nine degrees.

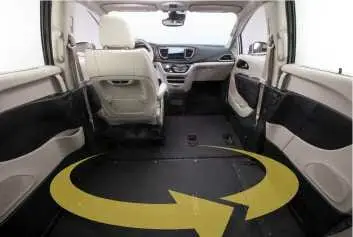

Obstacle-free front seats allow easy removal and installation, aiding in creating multiple seating arrangements for wheelchair users and passengers. The space inside is large enough to accommodate two wheelchairs side-by-side if needed. The front seats are also interchangeable. This feature allows a driver and wheelchair passenger to switch positions or vice versa without sacrificing safety.
All new Vantage Mobility wheelchair vans are made with galvaneal steel flooring. These floors are also E-coated for optimal rust and corrosion prevention after many years of use. Vantage Mobility is the only manufacturer using this type of steel, and includes a 7-year/unlimited miles rust-through warranty with their vehicles!

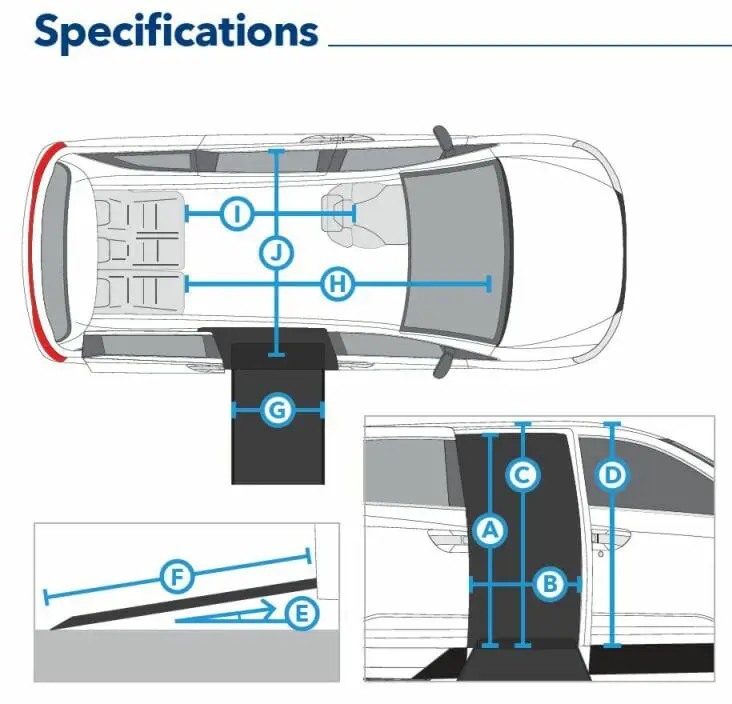

| Usable Door Opening Height | A | 56″ |
| Usable Door Opening Width | B | 29.3″ |
| Inside Center Height | C | 59″ |
| Height at Driver & Passenger Position | D | 60″ |
| Angle of Ramp | E | 9 Degrees |
| Length of Ramp | F | 59″ |
| Usable Ramp Width | G | 30″ |
| Overall Floor Length | H | 91.5″ |
| Length of Floor Behind Front Seats | I | 65.8″ |
| Width of Interior at B-Pillars | J | 60.2″ |
| Ramp Load Capacity | 1000 lbs. |
