BraunAbility Dodge Caravan Rear-Entry Wheelchair Van

The BraunAbility Dodge Grand Caravan rear-entry wheelchair van offers a practical and affordable solution for families and caregivers. This manual rear-entry conversion features a fold-out wheelchair ramp designed for fast, convenient loading and unloading wheelchair users without requiring extra parking space beside the vehicle. Its straight-in access design makes it ideal for tight or crowded parking environments.

The rear-entry wheelchair van is compatible with nearly all types and sizes of wheelchairs, power chairs, and mobility scooters. It can also be equipped to allow the wheelchair user to ride as a front passenger or transfer to the driver’s seat when configured appropriately.



Accessible Manual Ramp System for Rear-Entry Access

The BraunAbility Dodge Caravan rear-entry wheelchair van features a manually operated hatch and fold-out ramp, designed for quick, reliable access without the need for power assistance. This setup is especially popular among non-emergency medical transport providers who prefer the speed and simplicity of manual ramp operation. With fewer moving parts and electronics, the manual ramp reduces long-term maintenance costs and improves overall reliability.

Flexible Seating Options for Second and Third Rows

Rear-entry Dodge Caravan wheelchair-accessible vans offer several customizable seating configurations for the second and third rows. Choose from factory or aftermarket flip-and-fold mid-row seats, or stick with standard fixed bucket seats if folding isn’t needed. Third-row bench seat options are also available and can flip and fold out of the way when the ramp is in use, offering a more spacious and accessible interior.

Full-Cut vs. Half-Cut Rear-Entry Conversions

The BraunAbility rear-entry Dodge Grand Caravan wheelchair van is available in both full-cut and half-cut conversion options. A full-cut conversion extends the lowered floor to the front seats, allowing the wheelchair user to transfer or ride in the front passenger area. This is the most common layout for rear-entry wheelchair vans. Half-cut conversions are available for users who do not require front-seat access but still want the benefits of a rear-entry design.

BraunAbility Dodge Caravan Rear-Entry Vehicle Specifications

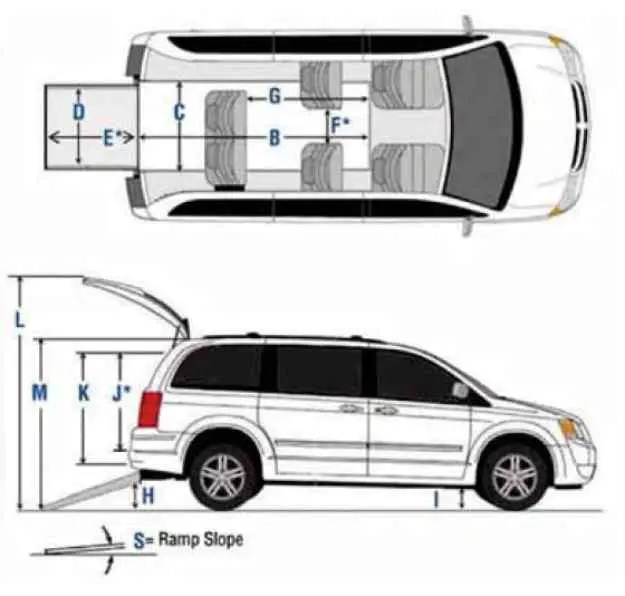

Illustration of a Dodge Caravan rear-entry wheelchair van conversions measurement points
Inside Lowered Floor LengthA96.5″
Wheelchair Channel WidthB33.25″
Usable Ramp WidthC34″
Length of RampD58″
Interior Height at Mid-Row SeatingJ58″
Rear-Hatch Opening HeightK54.5″
Angle of RampS10 Degrees
Overall Vehicle Height 73″
Ramp Load Capacity 1000 lbs.
