The Power Fold-Out Dodge Grand Caravan wheelchair van is BraunAbility’s flagship vehicle and the most sold conversion worldwide. This wheelchair-accessible van is easy to operate and has a spacious interior and numerous advanced features. For instance, a single-touch power entry and exit system; Power sliding doors; power wheelchair & scooter ramp; Automatic kneeling system (which helps reduce ramp angle); and removable front seats to allow for up-front passenger or from-the-chair driving. Click here for additional buying tips.
The BraunAbility Power Fold-Out Dodge Caravan wheelchair-accessible van has both power sliding side doors and a ramp. The doors and ramp are operated using the factory key fob or switches inside the cabin. If you experience a power failure, the ramp can still be easily operated manually.
The fold-out wheelchair ramp is 29.25 inches wide and made of lightweight aluminum with a load capacity of 1000 pounds.
To reduce the ramp angle and make it easier to enter and exit the vehicle, every BraunAbility Power Fold-Out Dodge Caravan handicap van features an automatic “kneeling” system. When deploying the ramp, the computer activates an actuator mounted on the vehicle’s rear passenger side. Once engaged, the actuator lowers the van’s ramp side, thus reducing the ramp angle. You can also turn off the kneeling system if desired.
The BraunAbility Power Fold-Out Dodge Caravan wheelchair-accessible van has front seats that are easily removed. Removing these seats allows the wheelchair user to drive from his/her chair or ride as a passenger up-front. The seats are easily unlocked at the base, rolled away for easy storage, and can be reinstalled anytime.

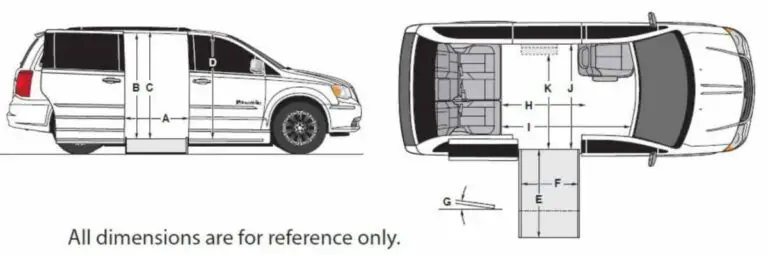

| Usable Door Opening Width | A | 31.5″ |
| Usable Door Opening Height | B | 52.5″ |
| Inside Center Height | C | 57.25″ |
| Height at Driver & Passenger Position | D | 56.25″ |
| Length of Ramp | E | 52″ |
| Usable Ramp Width | F | 29.25″ |
| Angle of Ramp | G | 10.6 Degrees |
| Length of Floor Behind Front Seats | H | 57″ |
| Overall Floor Length | I | 87.5″ |
| Width of Interior at B-Pillars | J | 62″ |
| Ramp Load Capacity | 1000 lbs. |
